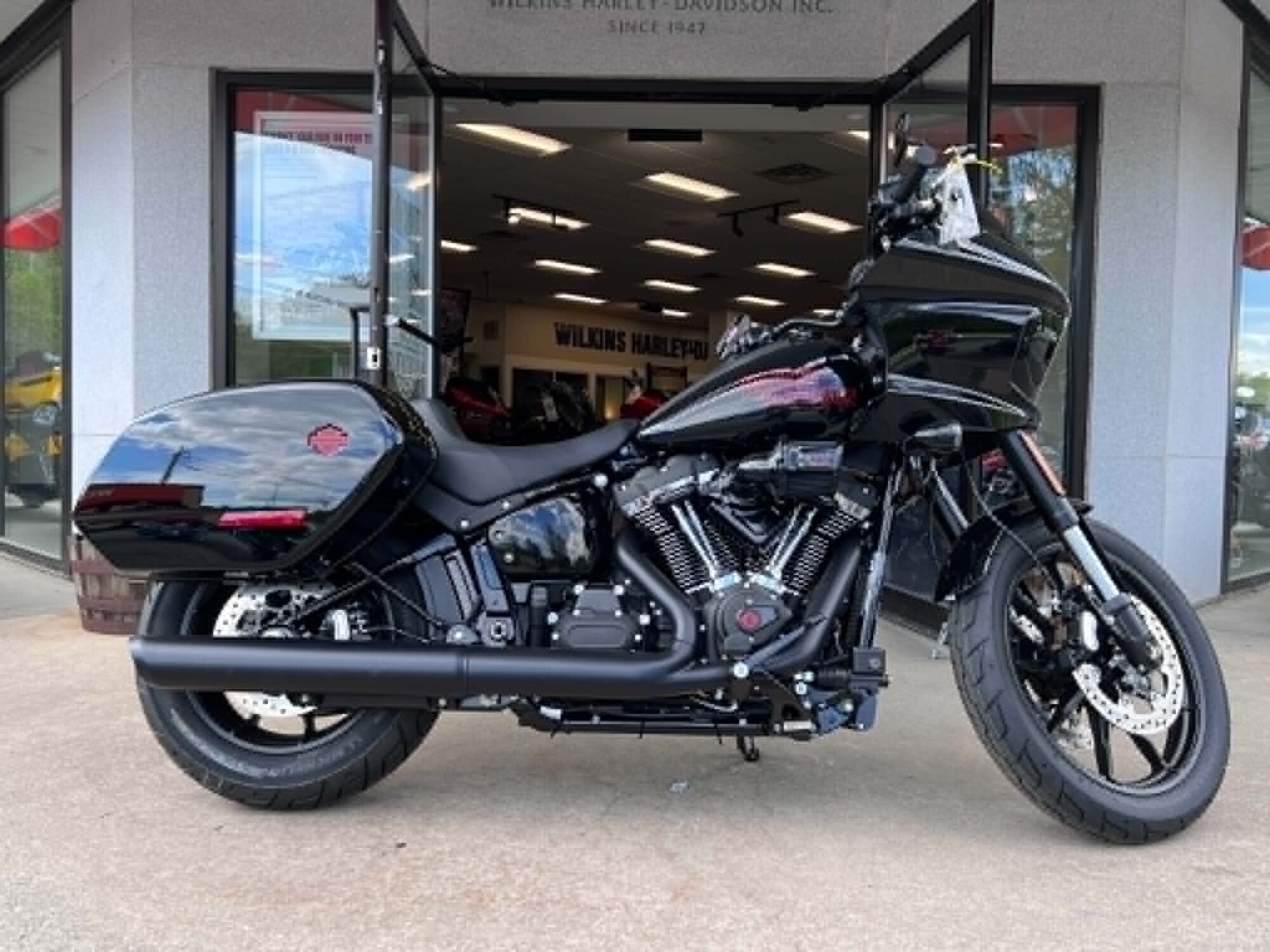

2026 Harley-Davidson® Low Rider® ST (FXLRST) – Vivid Black / Black Trim

The Precision-Performance PowerhouseThe 2026 Low Rider® ST is the definitive factory-custom performance bagger. Wrapped in a seamless Vivid Black finish with a full Black Trim package, this machine sheds the chrome to focus on raw speed and agility. While the 2024 model set a high bar, the 2026 edition introduces several key refinements that elevate the riding experience for the modern enthusiast.

The 2026 Upgrade: Why it Outperforms the 2024 Model:

Enhanced Instrumentation: While the 2024 model relied on a minimalist handlebar-mounted readout, the 2026 FXLRST features an updated digital display with improved sunlight visibility and more comprehensive vehicle data, making it easier to monitor performance at a glance.
Milwaukee-Eight® V-Twin Optimization: The 2026 powertrain features further refinements in thermal management. Building on the massive torque of the previous generation, the new model manages heat even more efficiently during aggressive canyon carving or heavy traffic.
Lighting Evolution: The 2026 model comes standard with an upgraded LED headlamp assembly, providing a punchier, more focused beam pattern for better nighttime visibility than the 2024 factory unit.
Revised Suspension Tuning: Harley-Davidson® engineers have tweaked the rear monoshock valving for 2026, offering a more planted feel in high-speed sweepers while maintaining the high-clearance lean angle the ST is famous for.
Updated Ride Safety Tech: The 2026 model features the latest generation of cornering-enhanced ABS and traction control, offering smoother interventions and more confidence-inspiring control compared to the earlier 2024 systems.

Why Choose Wilkins Harley-Davidson®?

At Wilkins Harley-Davidson®, we are the destination for performance-minded riders. Our team understands the nuances of the FXLRST platform and can help you take this Vivid Black beauty to the next level with performance upgrades or ergonomic adjustments.

Specifications

Dimensions

add remove
- Length:

  92.9 in
- Seat height, unladen:

  28.1 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  686 lbs
- Weight, in running order:

  712 lb
- Luggage capacity – volume:

  2 cu ft (0.056 m3)
- Tire, type:

  Michelin® Scorcher 31, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 High-Output
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  128.3 ft-lb
- Engine torque (RPM):

  4000
- Horsepower:

  114 HP / 85 kW @ 5000 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Chrome, Radiate Cast Aluminum
- Wheels, rear type:

  Chrome, Radiate Cast Aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
